As a reputable supplier of 6x4 dump trucks, I've witnessed firsthand the incredible engineering behind these powerful vehicles. One of the most fascinating aspects of a 6x4 dump truck is its hydraulic system, which plays a crucial role in the truck's functionality. In this blog post, I'll delve into the inner workings of the hydraulic system in a 6x4 dump truck, explaining how it operates and why it's so essential.
Understanding the Basics of Hydraulics
Before we dive into the specifics of the hydraulic system in a 6x4 dump truck, let's first understand the basic principles of hydraulics. Hydraulics is a technology that uses a liquid, typically oil, to transmit power. The fundamental concept behind hydraulics is Pascal's law, which states that when pressure is applied to a confined fluid, the pressure change occurs throughout the entire fluid.
In a hydraulic system, there are several key components:
- Hydraulic Pump: This is the heart of the hydraulic system. The pump converts mechanical energy from the truck's engine into hydraulic energy by creating pressure in the hydraulic fluid.
- Hydraulic Fluid: Usually, hydraulic oil is used as the fluid. It serves as the medium for transmitting power and lubricating the components within the system.
- Control Valves: These valves regulate the flow and direction of the hydraulic fluid. They allow the operator to control the movement of the hydraulic cylinders.
- Hydraulic Cylinders: These are the actuators of the system. When hydraulic fluid is pumped into a cylinder, it creates a force that moves a piston, which in turn performs the desired work, such as lifting the dump body.
The Hydraulic System in a 6x4 Dump Truck
Now, let's take a closer look at how the hydraulic system is integrated into a 6x4 dump truck.
The Hydraulic Pump
The hydraulic pump in a 6x4 dump truck is typically driven by the truck's engine. There are different types of hydraulic pumps, but the most common ones used in dump trucks are gear pumps and vane pumps. The pump draws hydraulic fluid from a reservoir and pressurizes it before sending it through the system.
The power of the pump is crucial as it determines the speed and force with which the dump body can be lifted. A more powerful pump can lift the dump body more quickly and handle heavier loads.
The Control Valves
The control valves are responsible for directing the flow of the pressurized hydraulic fluid to the appropriate hydraulic cylinders. In a 6x4 dump truck, the operator uses a control lever or a switch to operate the valves. When the operator wants to lift the dump body, they activate the valve to allow the pressurized fluid to flow into the lifting cylinders. Conversely, when they want to lower the dump body, the valve is adjusted to release the fluid back to the reservoir in a controlled manner.
The Hydraulic Cylinders
The hydraulic cylinders in a 6x4 dump truck are the components that actually perform the lifting and lowering of the dump body. There are usually two or more cylinders depending on the design and capacity of the truck. These cylinders are connected to the dump body and the chassis of the truck.
When the pressurized hydraulic fluid enters the cylinder, it pushes against the piston inside. The force generated by the fluid causes the piston to extend, which in turn lifts the dump body. The size and capacity of the cylinders are designed to handle the weight of the load and the dump body itself.
The Working Process
Let's walk through the working process of the hydraulic system when a 6x4 dump truck is used to unload its cargo.
- Initial Setup: Before starting the unloading process, the truck is parked on a level surface, and the engine is running to power the hydraulic pump.
- Lifting the Dump Body: The operator activates the control valve to direct the pressurized hydraulic fluid from the pump to the lifting cylinders. As the fluid enters the cylinders, the pistons extend, gradually lifting the dump body. The rate of lifting can be controlled by adjusting the flow of the fluid using the control valve.
- Unloading the Cargo: Once the dump body is fully lifted to the desired angle, the cargo slides out of the body due to gravity. The operator can monitor the unloading process and make any necessary adjustments to the angle of the dump body.
- Lowering the Dump Body: After the cargo has been unloaded, the operator reverses the control valve to allow the hydraulic fluid to flow back to the reservoir. As the fluid leaves the cylinders, the pistons retract, and the dump body slowly lowers back to its original position.
Advantages of the Hydraulic System in a 6x4 Dump Truck
The hydraulic system offers several advantages that make it an ideal choice for 6x4 dump trucks:
- High Power-to-Weight Ratio: Hydraulic systems can generate a large amount of force with relatively small and lightweight components. This allows the truck to lift heavy loads efficiently.
- Precise Control: The operator has precise control over the lifting and lowering of the dump body. They can adjust the speed and position of the dump body according to the requirements of the unloading process.
- Reliability: Hydraulic components are designed to be durable and resistant to wear and tear. With proper maintenance, the hydraulic system can provide reliable performance over a long period of time.
- Safety: The hydraulic system provides a safe way to handle heavy loads. The controlled lifting and lowering of the dump body reduce the risk of accidents and injuries.
Our Dump Truck Offerings
At our company, we offer a wide range of 6x4 dump trucks, including the FAW Dump Truck, X5000 Dump Truck, and HOWO Dump Truck. These trucks are equipped with advanced hydraulic systems that ensure efficient and reliable operation.

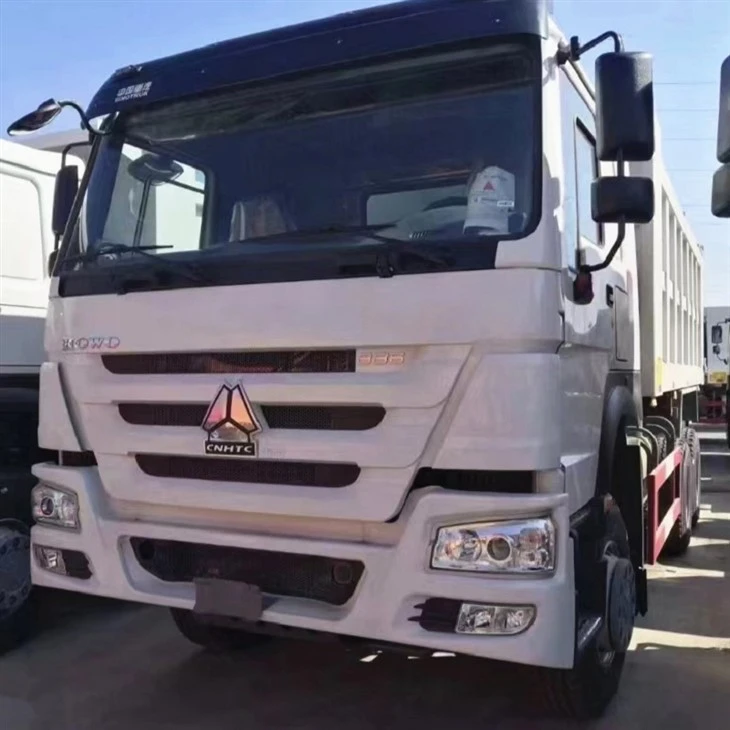

Our FAW Dump Truck is known for its robust construction and powerful performance. It is suitable for various types of construction and mining applications. The X5000 Dump Truck offers a combination of comfort and functionality, with a well-designed hydraulic system that provides smooth and precise control. The HOWO Dump Truck is a popular choice for its durability and high load capacity.
Conclusion
The hydraulic system in a 6x4 dump truck is a remarkable piece of engineering that enables these trucks to perform their essential tasks efficiently and safely. Understanding how the hydraulic system works can help operators make the most of their trucks and ensure proper maintenance.
If you're in the market for a 6x4 dump truck, we invite you to contact us for more information and to discuss your specific requirements. Our team of experts is ready to assist you in finding the perfect dump truck for your needs.
References
- "Hydraulics and Pneumatics: A Technician's and Engineer's Guide" by Andrew Parr
- "Heavy Equipment Technology" by Kent L. Worthington
