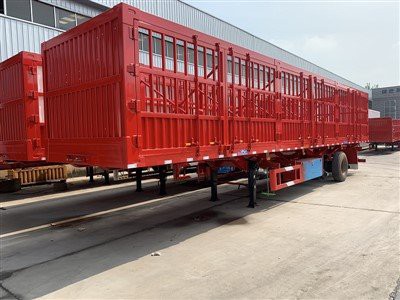

Carrier Trailer

Structure Design Frame: A frame structure composed of high-quality manganese welded longitudinal beams and reinforced crossbeams. Some high-end products will use advanced computer-aided design software for optimization design, perform finite element analysis on the frame based on the vehicle's load-bearing quality requirements, achieve scientific design, reasonable load distribution, and reduce self weight while ensuring strength. Carriage: The carriage body is usually made of high-strength cold-rolled corrugated steel plates, without a skeleton structure, with high strength, stiffness, and toughness, strong bearing capacity, and is not prone to permanent deformation. The carriage has two shapes to choose from: dustpan and rectangle. The carriage height is diverse and can be customized according to different types of goods and transportation needs. The overall height is generally between 2.7 meters and 3.1 meters, with a large loading space. Door opening structure: It adopts an automatic door opening structure and is designed with manual door opening function, which is flexible and easy to operate in different scenarios. Lifting system: composed of power take-off, hydraulic jack, oil cylinder, etc. The self dumping function is achieved by driving the hydraulic top with a power take-off. Generally, there are multiple lifting cylinders, with common cylinder diameters of 110 # and 130 #. Some models are also equipped with displacement cylinders to ensure the stability and accuracy of the carriage when it flips over. For example, a 13 meter long semi-trailer with a side flip typically has six lifting cylinders and one shifting cylinder, while an 8.5-meter long semi-trailer typically has four lifting cylinders and one shifting cylinder. Suspension system: It often adopts characteristic new suspensions, such as leaf spring under suspension, variable section panel spring, etc., which have high strength, strong impact resistance, good driving smoothness, and can effectively reduce bumps during vehicle driving, protect goods and vehicle components. Braking system: Reliable dual circuit air brake is usually used, which has good braking effect and can ensure the safety of the vehicle during driving.
